TW-700 CardTest ADSL
As an ADSL line testing instrument based on PCMCIA card, CardTest makes technician performing authentication by PC. This hot-swap PCMCIA card design can be applied on most PCs and operation systems. It provides general ADSL testing functions, such as graphic display of bit load, and confirms network mapping can be used for PPPoA, PPPoE and DHCP servers.
l Synchronization connection with DSLAM, report line parameters of upstream channel and downstream channel.
l Service speed provided by authentication, and with acceptable noise margin.
l Completely simulate the functions of ADSL modem, and check network access capability.
l Type-II PCMCIA Card
Features:
n Lightweight PCMCIA form factor
– No bulky external modem, power supply or cords!
– Much tighter integration into field technician’s tools
– Fully Hot swappable
n Intuitive Graphical User Interface (GUI)
n Operating System support for Windows 98SE/2000/XP
n Extensive Capabilities
– Line statistics and Bit loading graphs
– Line reach estimate
– Router Mapping and Surfing
– Basic Ping, mini Web Browser and FTP bandwidth utility
n Extensive WAN Protocol Support
– PPPoE, PPPoA, RFC1483 (Static and Dynamic)
– Auto or manual detection modes
n Save test data directly on laptop
n Auto detection of server protocol & authentication type (PAP or CHAP)

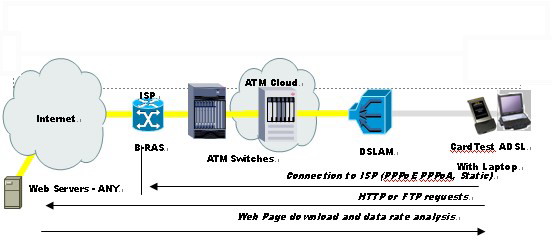

n Verifies Network Mapping for PPPoA, PPPoE and DHCP Service
Applications：
n CardTest ADSL is not just a modem emulator, but a REAL modem
– Connection to ISP and verification of user/password
– IP Throughput verification
– DNS server verification
– Web Browsing verification
n Results:
– Web page download
– Application Layer Data Throughput verification
Physical parameters:
n Standard RJ11 ADSL interface
n Temperature range
– Operating: +10°C to 55°C
– Storage: -20°C to +65°C
– Relative humidity: 5% to 95% non-condensing
n Electrical specifications
– Voltage – 3.3 Volts DC
– Maximum power - 2W
– Maximum current – 400 to 600mA
n Chipset – Alcatel technology based
